Huawei Network Switch S1720-28GWR-4P huawei 24 port switch Easy Installation

Name: Huawei Network Switch S172028GWR4P huawei 24 port switch Easy Installation
Brand: Huawei
Price: 211 USD

Quality Huawei Network Switch S1720-28GWR-4P huawei 24 port switch Easy Installation for sale

Brand Name : Huawei

Model Number : S1720-28GWR-4P

MOQ : 1

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 500pcs

Delivery Time : 1-3 work days

Price : $211

Part No. : 98010580

Description : S1720-28GWR-4P (24 Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V)

Condition : Original New, In Stock

Contact Now

Huawei Switch S1720-28GWR-4P (98010580)

The S1700 series switches are next-generation energy-saving Ethernet access switches. They provide easy installation and maintenance methods and various service features to help users build secure, reliable, and high-performance networks. The S1700 series switches can be widely used in Ethernet access scenarios such as small- and medium-sized enterprises, Internet cafes, hotels, and schools.

Quick Specification

Table 1 shows the quick specification.

Model	S1720-28GWR-4P
Part Number	98010580
First supported version	V200R010C00
Description	S1720-28GWR-4P (24 Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V)
Memory	512 MB
Flash memory	512 MB in total. To view the available flash memory size, run the display version command.
Typical power consumption	13.3 W
Typical heat dissipation	45.38 BTU/hour

Figure 1 shows the appearance of S1720-28GWR-4P.

Huawei Network Switch S1720-28GWR-4P huawei 24 port switch Easy Installation

Product Details

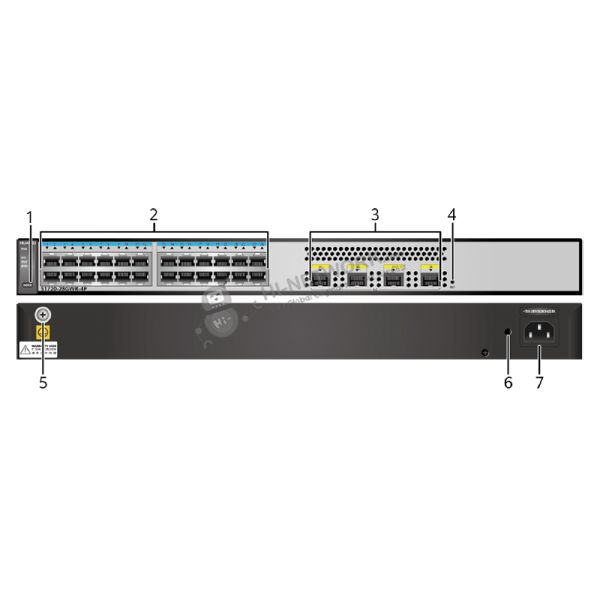

Figure 2 shows the structure of S1720-28GWR-4P.

Huawei Network Switch S1720-28GWR-4P huawei 24 port switch Easy Installation

Note:

(1)	Mode switching button	(5)	Ground screw
(2)	Twenty-four 10/100/1000BASE-T ports	(6)	Jack reserved for AC power cable locking strap
(3)	Four 1000BASE-X Ethernet ports	(7)	AC power socket
(4)	Reset button
