Huawei Switch S5710-28C-EI with 416 Gbit/s Switching Capacity 156 Mpps Forwarding Performance and 10 Gbit/s Upstream Transmissions

Name: Huawei Switch S571028CEI with 416 Gbits Switching Capacity 156 Mpps Forwarding Performance and 10 Gbits Upstream Transmissions
Brand: Huawei
Price: 972 USD

Quality Huawei Switch S5710-28C-EI with 416 Gbit/s Switching Capacity 156 Mpps Forwarding Performance and 10 Gbit/s Upstream Transmissions for sale

Brand Name : Huawei

Model Number : S5710-28C-EI

MOQ : 1

Price : $972

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 200pcs

Delivery Time : 3-5 days

Description : S5710-28C-EI (24 Ethernet 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP, 4 10 Gig SFP+ ports)

Condition : Original New; In stock

Contact Now

Huawei Switch S5710-28C-EI (02353170)

The S5710-28C-EI gigabit enterprise switch is next-generation energy-saving switch developed by Huawei to meet the demand for high-bandwidth access and Ethernet multi-service aggregation. With 24 GE ports and 2 extended slots, it provides a large switching capacity and high-density GE ports to implement 10 Gbit/s upstream transmissions, widely used in various application scenarios like enterprise park access, convergence, gigabit access of data center application scenarios. The S5710-28C-EI is easy to install and maintain, reducing workloads for network planning, construction, and maintenance, then it uses advanced reliability, security, and energy conservation technology to help enterprise customers build a next-generation IT network

Quick Specification

Table 1 show the quick specification.

Model	S5710-28C-EI
Part Number	02353170
Fixed Ports	24 Ethernet 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP, 4 10 Gig SFP+ ports
Extended Slots	2 extended slots
Memory (RAM)	512 MB
Flash	V200R001: 64 MB V200R002 and later versions: 200 MB
MAC Address Table Size Forwarding Performance	32K MAC
Forwarding Performance	156 Mpps
Switching Capacity	416 Gbit/s
Power Supply	Double hot-swappable AC/DC power supplies
Voltage Required	AC: Rated voltage range: 100V to 240V AC, 50/60 Hz Maximum voltage range: 90V to 264V AC, 50/60 Hz DC: Rated voltage range: –48V to –60V, DC Maximum voltage range: –36V to –72V, DC
Power Consumption Operational	< 100W
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm
Weight	7 kg

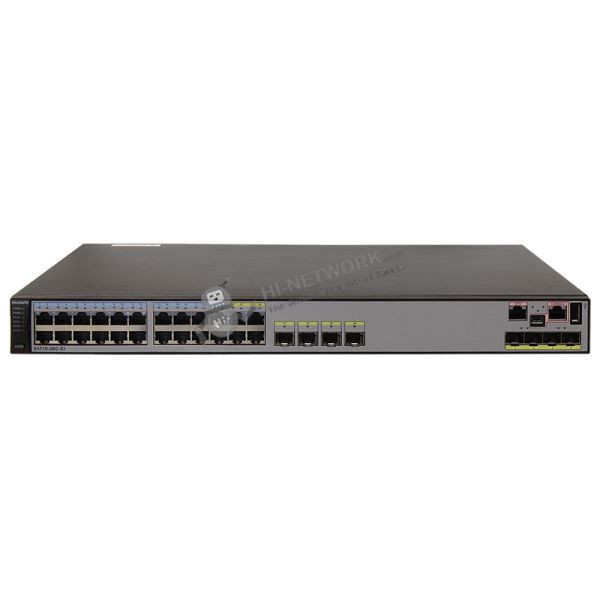

Figure 1 shows the appearance of S5710-28C-EI.

Huawei Switch S5710-28C-EI with 416 Gbit/s Switching Capacity 156 Mpps Forwarding Performance and 10 Gbit/s Upstream Transmissions

Product Details

Figure 2 shows the front panel of S5710-28C-EI.

Huawei Switch S5710-28C-EI with 416 Gbit/s Switching Capacity 156 Mpps Forwarding Performance and 10 Gbit/s Upstream Transmissions

Note:

(1)	Twenty 10/100/1000BASE-T ports	(5)	One mini USB port
(2)	Four combo ports (10/100/1000BASE-T + 100/1000BASE-X)	(6)	One console port
(3)	Four 10GE SFP+ ports	(7)	One USB port
(4)	One ETH management port

Figure 3 shows the back panel of S5710-28C-EI.

Huawei Switch S5710-28C-EI with 416 Gbit/s Switching Capacity 156 Mpps Forwarding Performance and 10 Gbit/s Upstream Transmissions

Note:

(7)	Ground screw	(10)	ESN label
(8)	Rear card slot 1	(11)	Power module slot 2
(9)	Rear card slot 2	(12)	Power module slot 1

* The ground screw is used with a ground cable.

* You can draw the label out to view the ESN and MAC address of the switch.

Recommended Modules

Table 2 shows the recommended optical modules.

Category	Model	Description
FE-SFP Optical Transceiver	SFP-FE-SX-MM1310	Optical Transceiver, SFP, 100M/155M, Multi-mode Module (1310nm, 2km, LC)
	eSFP-FE-LX-SM1310	Optical Transceiver, eSFP, 100M/155M, Single-mode Module (1310nm, 15km, LC)
	S-SFP-FE-LH40-SM1310	Optical Transceiver, SFP, FE, Single-mode Module (1310nm, 40km, LC)
GE-SFP Optical Transceiver	SFP-1000BaseT	Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45)
	eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)
	SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
	S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Sngle-mode Module (1310nm, 40km, LC)
	S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)
10G-SFP+ Optical Transceiver	SFP-10G-USR	10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)
	OMXD30000	Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)
	OSX010000	Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)

Compare with Similar Item

Table 3 shows the comparison of S5700-28C-EI, 5710-28C-EI and S5710-28C-PWR-EI-AC.

Models	S5700-28C-EI	S5710-28C-EI	S5710-28C-PWR-EI-AC
Fixed Ports	24 x 10/100/1,000 Base-T	24 x 10/100/1,000 Base-T, 4 of which are dual-purpose 10/100/1,000 or SFP, 4 x 10 GE SFP+	24 x 10/100/1,000 Base-T, 4 of which are dual-purpose 10/100/1,000 or SFP, 4 x 10 GE SFP+
Extended Slots	2 extended slots, one for an uplink subcard and the other for a stack card	2 extended slots for uplink subcards	2 extended slots for uplink subcards.
Power Supply	Double hot-swappable AC/DC	Double hot-swappable AC/DC	Double hot-swappable AC, PoE+
Forwarding Performance	96 Mpps	156 Mpps	156 Mpps
Switching Capacity	256 Gbit/s	416 Gbit/s	416 Gbit/s
Power Consumption	< 60W	< 100W	< 942W
